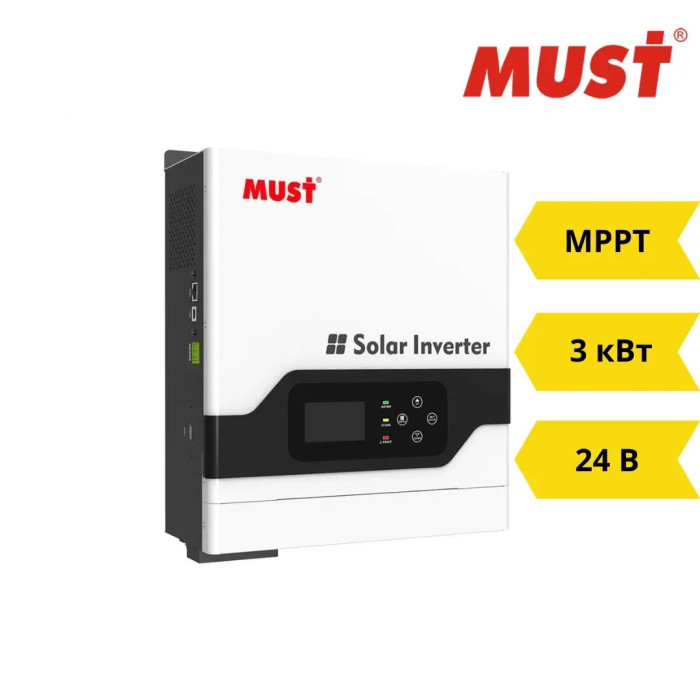

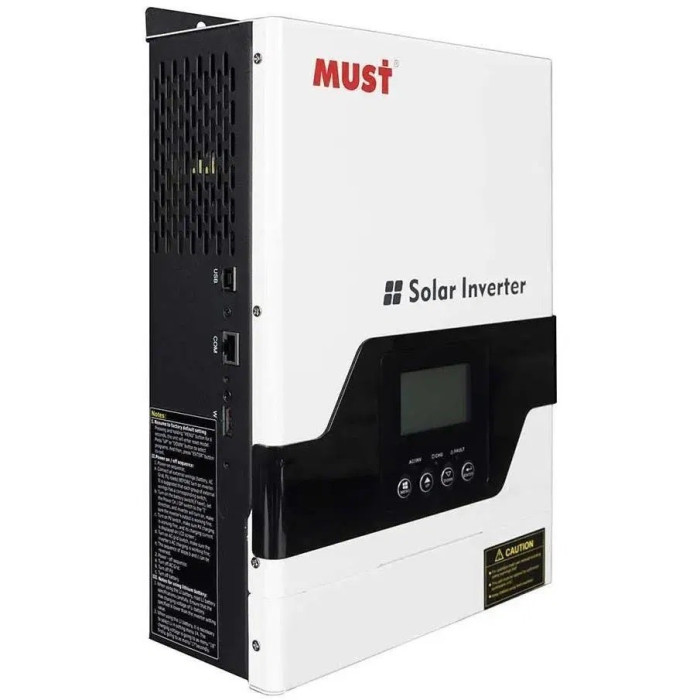

Hybrid Inverter Must PV18-3224 VPM2 (MPPT) 3.2 kW

This multifunctional inverter/charger combines the functions of an inverter, an MPPT 60A solar charger, and a battery charger to deliver uninterrupted power in a compact design. The LCD display provides all the necessary information about operating status, input, and output values, and allows you to configure settings such as battery charging current, AC/solar charger priority, and acceptable input voltage based on various applications.

Specifications:

Rated Power: 3200 W
Surge Power: 6400 W
Output Waveform: Pure sine wave
AC Voltage Regulation (Battery Mode): 220-240 VAC (configurable)
Voltage: 230 VAC
Selectable Voltage Range:
- 170-280 VAC (UPS mode)
- 90-280 VAC (APL mode)
- 184-253 VAC (VDE mode)
Frequency Range: 50 Hz/60 Hz (auto-sensing)
Battery Voltage: 24 V
- Nominal Voltage: 24 VDC
- Floating Charge Voltage: 27.4 VDC
- Overcharge Protection: 30 VDC
MPPT Voltage Range: 30~120 VDC
Standby Power Consumption: 2 W
Battery Charging Current (AC): 20A/30A/40A/60A (configurable)
Maximum Solar Charging Current: 60 A
Maximum Efficiency: 98%
Maximum Charging Current: 120 A
Humidity: 5% to 95% relative humidity (non-condensing)
Operating Temperature: -10°C~~50°C (battery charging at 0°C~~50°C)
Storage Temperature: -15°C to 60°C
Dimensions (WHD): 254.5 * 367.4 * 103 mm
